Common NC Program-GSK990M

1. Machining program listing

T01 M06

G90G55G00X0Y0

S800M03

G43H01Z50.

G01Z-6.5F100.

G42X-15.Y0D1

G02X0Y15.R15.

G03X7.726Y17.143R15.

G02X7.726Y-17.143R-20.

G03X-7.726Y-17.143R15.

G02X-7.726Y17.143R-20.

G03X0Y15.R15.

G02X15.Y0R15.

G40X0Y0D0

G01Y5.

X-25.

Y-5.

X25.

Y5.

Z50.0

G00X0Y0M05

M30

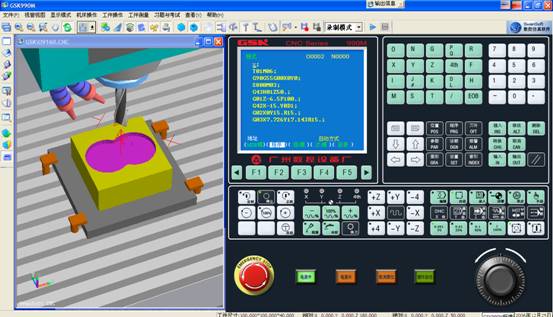

2. 3DM machining window

3. Two-dimensional machining trochoid
